Description

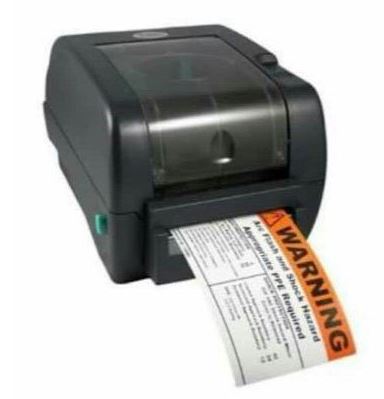

The TSC TTP-345 is a high-resolution 300 dpi desktop thermal transfer barcode printer engineered for businesses that require sharp, detailed labels and reliable day-to-day performance. With a print speed of up to 5 inches per second and a durable double-walled plastic body, the TTP-345 delivers outstanding print clarity for small labels, compliance marks, product identification, healthcare specimens, and retail applications.This model supports ribbons up to 300 metres, ensuring longer print cycles with reduced downtime. The user-friendly clamshell design allows easy loading of labels and ribbons, while its powerful 32-bit RISC processor, expandable memory, and TSPL-EZ™ firmware make integration simple across existing printing systems. Connectivity includes USB, RS-232, and Parallel ports, with optional internal Ethernet and Bluetooth for enhanced flexibility.Compact, robust, and cost-effective, the TTP-345 is a go-to choice for organisations requiring precise, dependable barcode printing.
Product Features
- High-Resolution 300 dpi Output – Perfect for small fonts, graphics, and detailed barcodes.
- Print Speed up to 5 ips – Fast and efficient label production for busy environments.
- 300m Ribbon Support – Longer ribbon capacity reduces frequent replacements.
- Clamshell Design – Simplifies media and ribbon loading.
- Multiple Connectivity Options – USB, RS-232, Parallel, with optional Ethernet and Bluetooth.
- Expandable Storage – SD card support up to 4 GB for large label files.
- Accurate Sensors – Gap, black mark (adjustable), ribbon end, and head-open.
- Advanced Barcode Support – 1D & 2D barcodes including QR, PDF417, DataMatrix, Aztec.
Product Specifications
Resolution | 300 dpi (12 dots/mm) |
Printing Method | Direct Thermal & Thermal Transfer |
Max Print Speed | 127 mm (5”)/sec |
Max Print Width | 106 mm (4.17”) |
Max Print Length | 1,016 mm (40”) |
Enclosure | Double-walled plastic |
Dimensions (W×H×D) | 213 × 188 × 314 mm |
Weight | 2.8 kg |
Label Roll Capacity | 127 mm (5”) OD |
Interfaces | USB 2.0, RS-232, Centronics (Parallel), Optional Ethernet & Bluetooth |
Sensors | Gap, Black Mark (adjustable), Ribbon End, Head Open |
Media Types | Continuous, die-cut, black mark, fan-fold, notched |
Media Width | 20–112 mm |
Media Thickness | 0.06–0.19 mm |
Media Core Diameter | 25.4–76.2 mm (1–3") |
Barcode Support | 1D & 2D: QR, DataMatrix, Aztec, PDF417, Maxicode |
Features
Interface:
- Ethernet
- Serial
- USB
Print Method :
- Direct Thermal
- Thermal Transfer
Print Resolution-DPI:
300
Print Speed :
- 127mm/sec
Print Type:
- Monochome
Warranty :
2Years
