Description

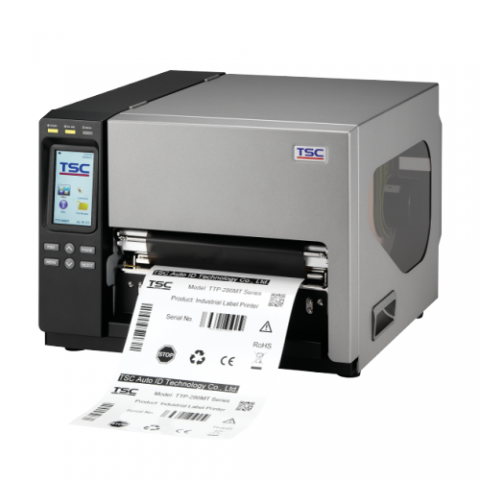

The TSC TTP-384MT Industrial Label Printer is engineered for wide-format, high-precision label printing applications. With a large 8.64-inch print width, 300 DPI high resolution, and rugged die-cast construction, it’s ideal for industrial environments requiring wide labels, such as chemical drums, logistics, and manufacturing. The printer features a 16-bit colour touchscreen, multi-interface connectivity (USB, RS-232, Parallel, Ethernet, USB Host), and expandable memory up to 32 GB. Supporting both Thermal Transfer and Direct Thermal printing, the TTP-384MT delivers durability, versatility, and ease of use for heavy-duty Indian businesses needing large-format, professional label printing.
Product Features
- Wide 8.64” print width ideal for large format and compliance labels.
- 300 DPI print resolution ensures sharp text, graphics, and barcodes.
- Supports both Thermal Transfer and Direct Thermal print methods.
- Fast printing speed up to 4 inches per second for high-volume environments.
- Durable metal enclosure with die-cast chassis and clear media window for rugged industrial use.
- 16-bit colour resistive touchscreen with intuitive control and backlight.
- Comprehensive connectivity: USB, RS-232, Parallel, Ethernet, and USB Host.
- Expandable memory up to 32 GB via SD card slot.
- Supports 1D and 2D barcodes, including QR, DataMatrix, and PDF417.
- Optional heavy-duty guillotine cutter for enhanced finishing operations.
Product Specifications
Specification | Details |
Print Resolution | 300 DPI (12 dots/mm) |
Print Method | Thermal Transfer & Direct Thermal |
Max. Print Speed | 102 mm/sec (4”/s) |
Max. Print Width | 219.5 mm (8.64”) |
Max. Print Length | 5,080 mm (200”) |
Processor | 32-bit RISC CPU |
Memory | 512 MB Flash / 256 MB SDRAM |
Expandable Memory | SD Flash card (up to 32 GB) |
Display | 16-bit Colour LCD, 480×272 px, Touchscreen |
Interface | RS-232, Parallel, USB 2.0, Ethernet (10/100 Mbps), USB Host |
Optional Interface | GPIO (factory option) |
Media Width | 101.6 – 241.3 mm (4” – 9.5”) |
Media Type | Continuous, die-cut, fan-fold, black mark, tag, perforated |
Media Thickness | 0.06 – 0.254 mm (2.36 – 10 mil) |
Label Roll Capacity | 208.3 mm (8.2”) OD |
Media Core Diameter | 76.2 mm (3”) |
Ribbon Length | 600 m (Max OD 90 mm, 1” core) |
Ribbon Width | 110 – 254 mm (4.3” – 10”) |
Sensors | Adjustable gap, black mark, ribbon end, encoder, head open |
Barcodes Supported | 1D: Code 39, Code 128, EAN, UPC; 2D: PDF-417, DataMatrix, QR, Aztec |
Printer Language | TSPL-EZ (EPL, ZPL, ZPL II compatible) |
Enclosure | Die-cast chassis / sheet metal with clear media window |
Power Supply | AC 100–240V, 50–60Hz, 200W |
Dimensions (W × H × D) | 440 × 336 × 514 mm |
Weight | 23.7 kg |
Operating Temperature | 5°C – 40°C |
Humidity | 20 – 85% non-condensing |
Warranty | Printer: 2 years; Printhead: 12 months or 25 km |
Optional Accessories | Guillotine cutter, Heavy-duty cutter, KP-200 Plus keyboard, KU-007 Plus smart keyboard |
