Description

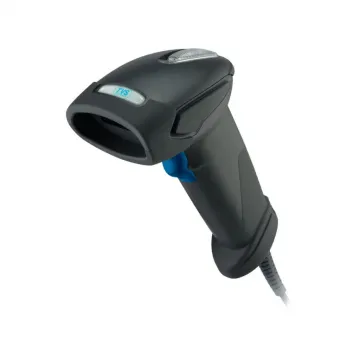

The TVS BS C103 Platina High Speed 1D Scanner is designed to provide efficient and reliable barcode scanning for various applications. With its advanced decoding technology and durable design, it offers superior performance and durability even in demanding environments. The scanner's ergonomic gun-type exterior design ensures comfortable handling, while its 1.5-meter drop resistance and synthetic rubber handle provide maximum protection against shocks and vibrations.
Key Features:
Key Features:
- Advanced 32-bit proprietary Ultrascan decoding technology for accurate barcode recognition
- GS1 Databar decoding capability for enhanced compatibility
- Analog image capture technology for precise scanning results
- Rugged and durable design capable of withstanding multiple drops from a height of 1.5 meters
- Superior scanning performance with a scan rate of 330 scans per second
- Wide depth of field (20 - 320 mm) and scan angle (42°) for comfortable scanning from various distances and angles
- Programmable indicator (LED) with optional vibrator for customizable feedback
- Multiple system interfaces including Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS
- Regulatory compliance with CE, FCC DOC, VCCI, BSMI standards
- Environmental sealing rating of IP 41 for protection against dust and water ingress
Product Specifications:
| Light Source | 617 nm visible red LED |
| Optical System | Linear CCD array |
| Image Sensor | 2500 pixels CCD |
| Depth of Field | 20 - 320 mm (UPC/EAN 100%, PCS=90%) |
| Scan Angle | 42° |
| Pitch/Roll/Skew Angle | 75° / 25° / 60° |
| Scan Rate | 330 scans per second |
| Minimum Bar Width | 0.07 mm (3 mil) (Code 39, PCS = 90%) |
| Print Contrast | Min. 20% @ UPC/EAN 100% |
| Indicator (LED) | Beeper and LED; optional vibrator |
| Programmable | Beeper tone & volume |
| Operation System Interfaces | Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS |
| Dimension | 147.0 × 62.0 × 114.5 mm (device only) |
| Weight | 120 g (device only) |
| Interface Cable | Field replaceable, standard 2M straight |
| Input Voltage | 5 VDC ±5% |
| Power Consumption | 0.6 watts |
| Operating Current | 110 mA typical |
| Regulatory EMC | CE, FCC DOC compliance, VCCI, BSMI |
| Safety | IEC 62471 Exempt |
| Operating Temperature | 0°C – 50°C (32°F – 122°F) |
| Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
| Humidity | 5% – 95% RH (non-condensing) |
| Light Level | 0-100,000 Lux (fluorescence) |
| Drop Durability | Designed to withstand 1.5M drops |
| Environmental Sealing | IP 41 |
