Description

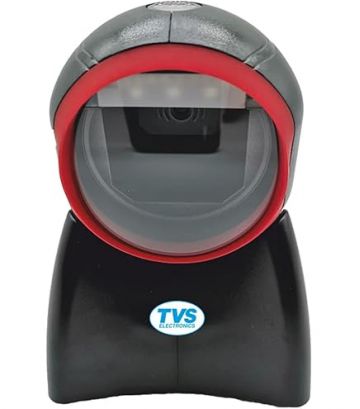

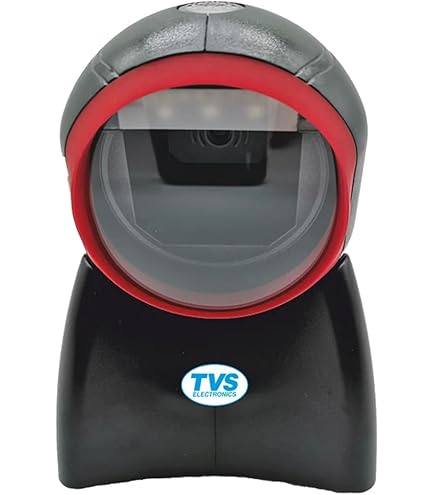

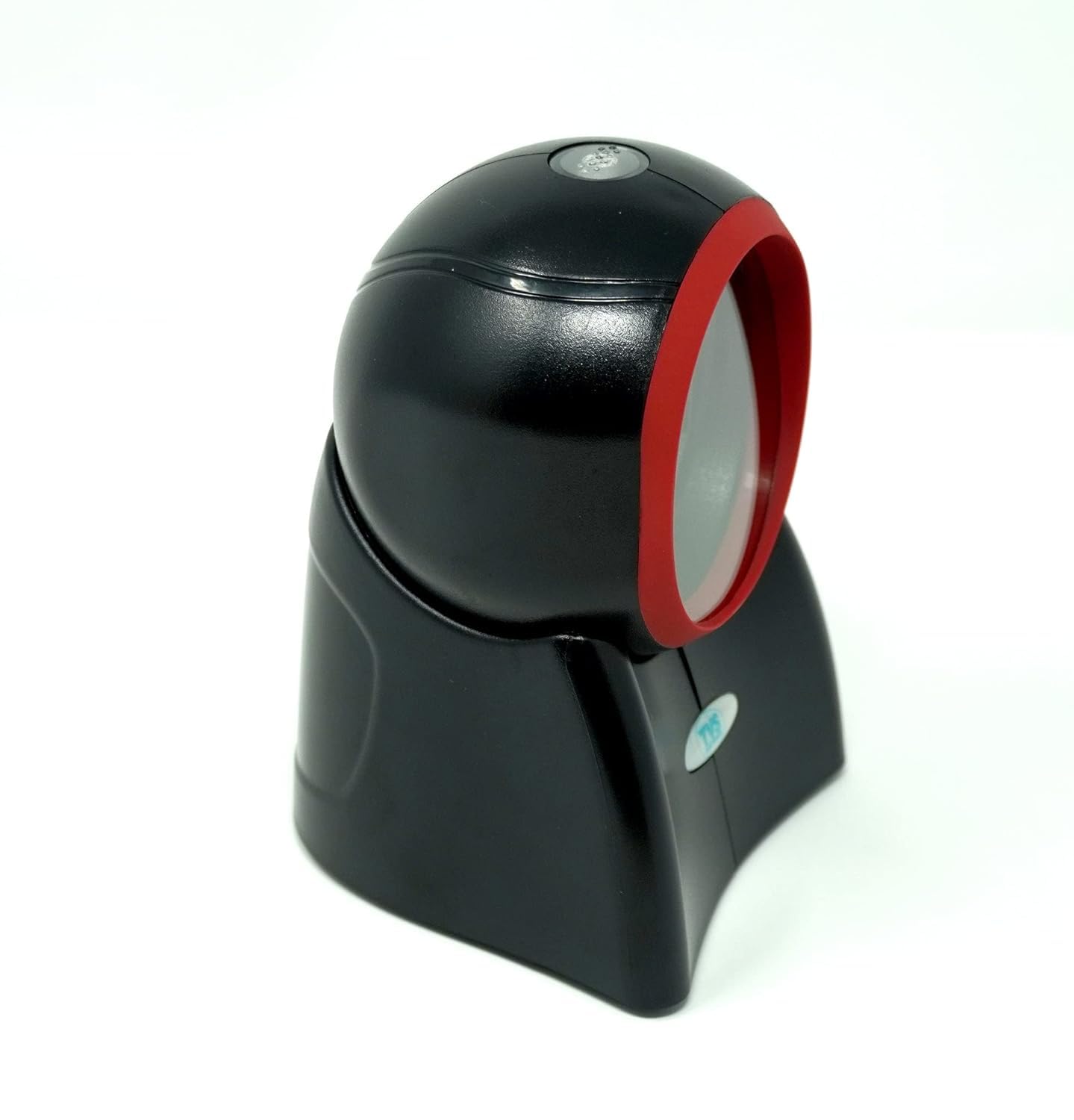

Designed for high-volume scanning environments, the TVS Hands-Free Barcode Scanner offers best-in-class performance in motion capture and frame rate. It supports both 1D and 2D barcode scanning with impressive depth of field and instant switching between manual and auto-trigger modes.
Its infrared sensor (IR trigger) ensures fast and reliable barcode detection — even on mobile screens, while its IP50-rated housing and 1.2m drop resistance make it rugged enough for busy retail and industrial setups. With USB plug-and-play connectivity, it integrates seamlessly with existing POS systems or software applications.
Ideal for use in supermarkets, production lines, and pathology labs, this scanner delivers fast, accurate, and hands-free scanning — helping improve throughput, reduce operator fatigue, and boost efficiency.
Product Features
-
Hands-free scanning for seamless retail and production workflows
-
Reads 1D & 2D barcodes, including on-screen QR codes
-
IR Auto-trigger for fast detection and reduced manual effort
-
Motion tolerance of up to 2.5 meters/second for high-speed scanning
-
Best-in-class scan frame rate for uninterrupted performance
-
Wide scan angle and enhanced symbol contrast handling (≥25%)
-
Plug & Play USB interface for quick setup
-
Durable design with 1.2m drop resistance and IP50 protection
-
Supports Auto and Manual trigger modes
Product Specifications
Image Sensor | 752 × 480 CMOS |
Supported Barcodes (1D) | EAN13, EAN8, UPCA, UPCE, ISBN, Code128, Code39, ITF, Codabar, MSI, etc. |
Supported Barcodes (2D) | PDF417, QR Code, Data Matrix, Chinese Sensible Code |
Minimum Resolution | 6.67 mil (PDF417), 5 mil (Code 39) |
Reading Distance | Code 39 (20mil): 40–200mm EAN13 (13mil): 5–180mm QR Code: 10–180mm |
Motion Tolerance | 2.5 m/s |
Scan Angles | Pitch ±60°, Roll ±360°, Skew ±50° |
Symbol Contrast | ≥25% |
Interface | USB (Plug and Play) |
Dimensions (L×W×H) | 83 × 81 × 128 mm |
Weight | 290 g |
Notification | Beep + LED Indicator |
Operating Current | 150 mA |
Standby Current | 120 mA |
Operating Temperature | 20°C to 50°C |
Storage Temperature | -40°C to 70°C |
Humidity | 5% to 95% RH (non-condensing) |
Drop Resistance | 1.2m on concrete (6 sides, one drop per side) |
Sealing | IP50 |
Accessories | USB Cable |
ESD Protection | ±14kV air discharge, ±18kV contact discharge |
