Description

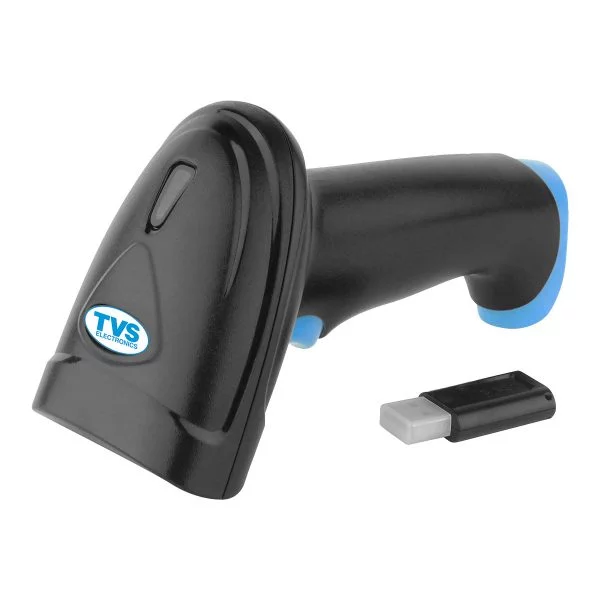

The TVS Electronics BS-i201s WL is an economical and efficient 2D wireless barcode scanner built to withstand tough environments. Featuring a high-performance imaging engine and robust design, it can decode both 1D and 2D barcodes—including damaged or poorly printed ones—with exceptional accuracy. With a lightweight yet rugged ABS+PC body, this device offers ergonomic comfort for extended usage. The scanner boasts a 40-metre transmission range, 512K character storage, and supports both Bluetooth and 2.4GHz wireless communication. Ideal for supermarkets, warehouses, logistics, and healthcare sectors, the BS-i201s WL provides fast scanning speeds, superior battery life, and advanced offline storage capabilities to enhance operational efficiency.
Product Features
- 2D wireless scanner designed for high performance and affordability
- Reads damaged or poorly printed 1D/2D barcodes effortlessly
- Compact, lightweight, and rugged design with ergonomic grip
- High-precision CMOS sensor with 640×480 resolution
- 40-metre transmission range in open space
- 512K offline storage for uninterrupted scanning
- 150 scans per second speed for quick processing
- Drop-resistant design with 3-metre shock tolerance
- 6-hour battery backup with 1400mAh lithium battery
- Dual communication: 2.4GHz receiver & Bluetooth BLE 4.0
- USB HID interface with straight USB cable charging
- Suitable for inventory, healthcare, textiles, and retail applications
Product Specifications
Specification | Details |
Light Source | 617nm LED Aimer, White LED |
Supported Barcodes | 1D,2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micro QR, Micro PDF417, Hanxin |
Resolution | 640×480 |
Scan Mode | Manual / Continuous / Automatic Induction |
Scan Speed | 150 scans/sec |
Scan Angle | Yaw ±55°, Rotation 360°, Pitch ±55° |
Precision | ≥5mil |
Contrast | ≥20% |
Depth of Scan Field | EAN13: 50–200mm (13mil), QR: 25–240mm (20mil), PDF417: 30–130mm (6.67mil) |
Error Rate | 1 / 5 million |
Interface | USB HID |
Communication Mode | 2.4G dedicated receiver, Bluetooth BLE 4.0 |
Transmission Distance | 30–50 metres (open area) |
Storage Mode | Offline & Inventory (512K character capacity) |
Pairing Mode | One-to-One (scanner to receiver/mobile device) |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -40°C to 70°C |
Relative Humidity | 5% to 95% RH (non-condensing) |
Dimensions | 90mm x 66mm x 173mm |
Weight | 130g |
Cable Length | 1.2 metres |
Drop Shock Resistance | 3 metres (multiple drops to concrete) |
Material | ABS + PC |
Voltage | DC 5V ±5% |
Operating Current | ≥26mA (non-scanning) |
Battery Working Time | Up to 6 hours |
Battery | 1400mAh Lithium-ion |
Standby Current | 0mA (cuts battery power in standby) |
Charging Time | 3.5 hours |
Charge Mode | USB straight plug charging |
