Description

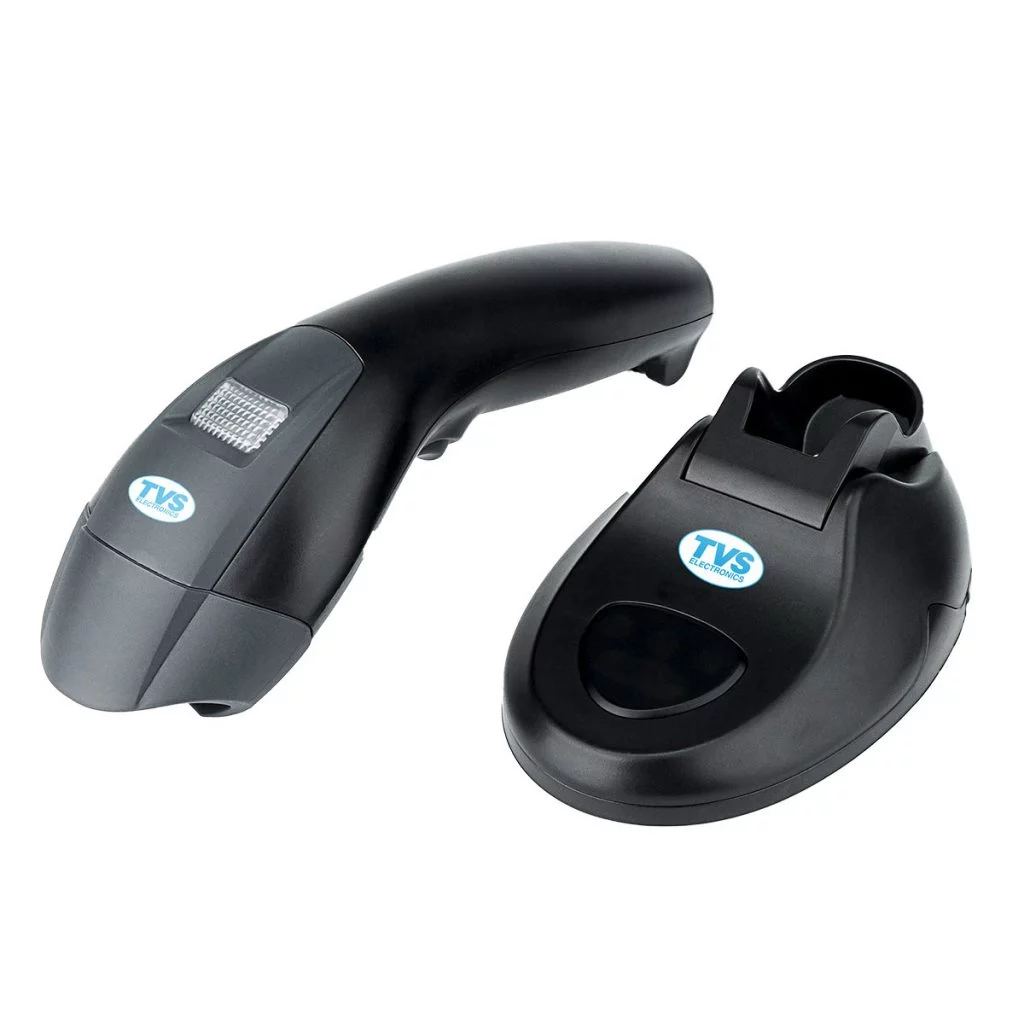

The TVS BS-i203S BT Lite is a rugged, high-speed 2D wireless barcode scanner designed for long-hour scanning operations across multiple industries. Equipped with Bluetooth BLE 4.0 and 2.4G wireless technology, it offers a transmission range of up to 50 meters and is ideal for use in healthcare, logistics, retail, and warehousing. The scanner features a user-friendly charging cradle, an ergonomic design, and industry-grade durability with 3-meter drop resistance. Its ability to decode poorly printed or damaged barcodes, combined with 512K character offline storage, ensures uninterrupted, high-performance scanning even in challenging environments.
Product Features
- Bluetooth BLE 4.0 & 2.4G Wireless Connectivity with up to 50m range
- Ergonomic and Durable Design with comfortable scan button
- 300 Scans/Second High-Speed Decoding
- Wide Barcode Compatibility for 1D & 2D symbologies
- 3-Metre Drop Shock Resistance on concrete
- Easy Charging via Cradle with 3.5-hour recharge time
- 512K Character Offline Storage with inventory mode support
- Long-Lasting 1400mAh Battery with up to 6 hours of operation
- User-Friendly Interface with USB HID and USB COM support
- Lightweight and Portable (Only 279g)
Product Specifications
Specification | Details |
Model | BS-i203S BT Lite |
Image Sensor | CMOS, 640×480 resolution |
Light Source | 617nm LED aimer, White LED |
Scan Speed | 300 scans/second |
Scan Angle | Yaw 45°, Rotation 360°, Pitch 45° |
Minimum Precision | ≥5mil |
Minimum Contrast | ≥10% |
Supported Barcodes | 1D & 2D including QR, Data Matrix, PDF417, Aztec, etc. |
Scan Depth | EAN13: 35–330mm, QR: 20–160mm, PDF417: 60–90mm |
Error Rate | 1 in 5 million |
Interfaces | USB HID, USB COM |
Communication Mode | 2.4G, Bluetooth BLE 4.0, Dedicated receiver pairing |
Transmission Distance | 30–50 meters (open yard) |
Storage Mode | Offline & Inventory Mode (512K character capacity) |
Pairing Mode | One-to-One with receiver or mobile Bluetooth device |
Battery Capacity | 1400mAh Lithium-ion |
Battery Working Time | Up to 6 hours |
Charging Time | Approx. 3.5 hours |
Charging Method | Contact-based charging via cradle |
Operating Temperature | -20°C to 50°C |
Storage Temperature | -40°C to 70°C |
Relative Humidity | 0% to 95% RH |
Drop Resistance | 3 meters on concrete (multiple drops) |
Dimensions (L×W×H) | 86.5 × 137 × 168 mm |
Weight | 279g |
Cable Length | 1.2 meters |
Material | ABS + PC |
Voltage / Current | DC5V ±5% / 280mA |
