Description

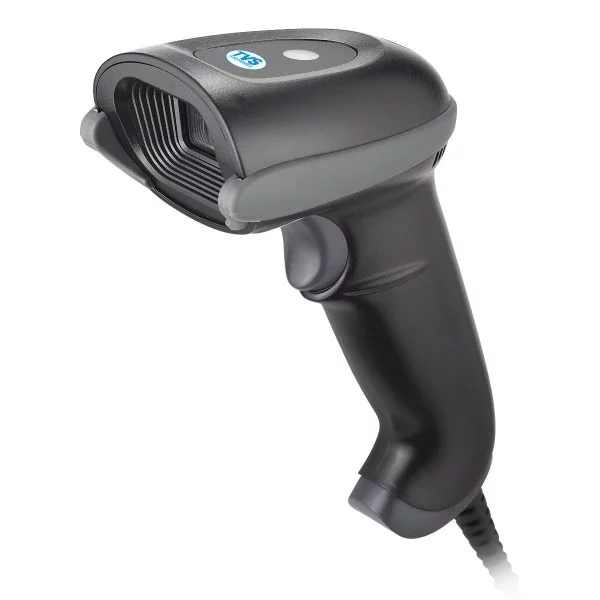

The TVS Electronics BS-i203z PLATINA is a high-performance 2D wired barcode scanner designed for fast, accurate, and reliable barcode reading in diverse environments. With a rugged build and ergonomic gun-type design, it offers a comfortable grip for extended use. It features a high-resolution 1280×800 pixel imager that delivers superior decoding performance for both printed and digital codes—even under harsh lighting or low contrast conditions. This scanner is ideal for industries such as healthcare, retail, logistics, and textiles. With USB and RS232 interface support, the BS-i203z PLATINA ensures seamless integration with a variety of systems while maintaining maximum scanning efficiency.
Product Features
- High-resolution 1280×800 pixel image sensor for enhanced accuracy
- Supports 1D and complex 2D barcode decoding
- Reads barcodes from paper, labels, and smartphone screens
- Durable housing with IP42 rating for protection against dust and moisture
- Dual connectivity: USB and RS232 interface
- Lightweight and ergonomic design for comfortable long-term use
- Fast scanning speed of 60 frames per second
- Excellent ambient light immunity (up to 100,000 lux)
- Withstands drops from 1.5 metres
- Ideal for retail, healthcare, logistics, and industrial environments
Product Specifications
Specification | Details |
Aiming Element | 617 nm LED |
Illumination | 617 nm LED |
Imager Field of View | 38.6° H x 24.9° V nominal |
Image Sensor Resolution | 1280 x 800 pixels |
Minimum Print Contrast | 25% |
Skew / Pitch / Roll | ±60° / ±60° / 360° |
Minimum Element Resolution | 4 mil |
Scan Speed | 60 fps |
Input Voltage | 5 VDC |
Current (Operating) | 300 mA |
Supported Interfaces | USB, RS232 |
User Indicators | 2-colour LED with beeper tone |
Drop Specification | Withstands drops from 1.5 metres |
Environmental Sealing | IP42 |
Ambient Light Immunity | 0 – 100,000 lux |
Weight | 150 g |
Dimensions | 180 mm x 70 mm x 107 mm |
