Description

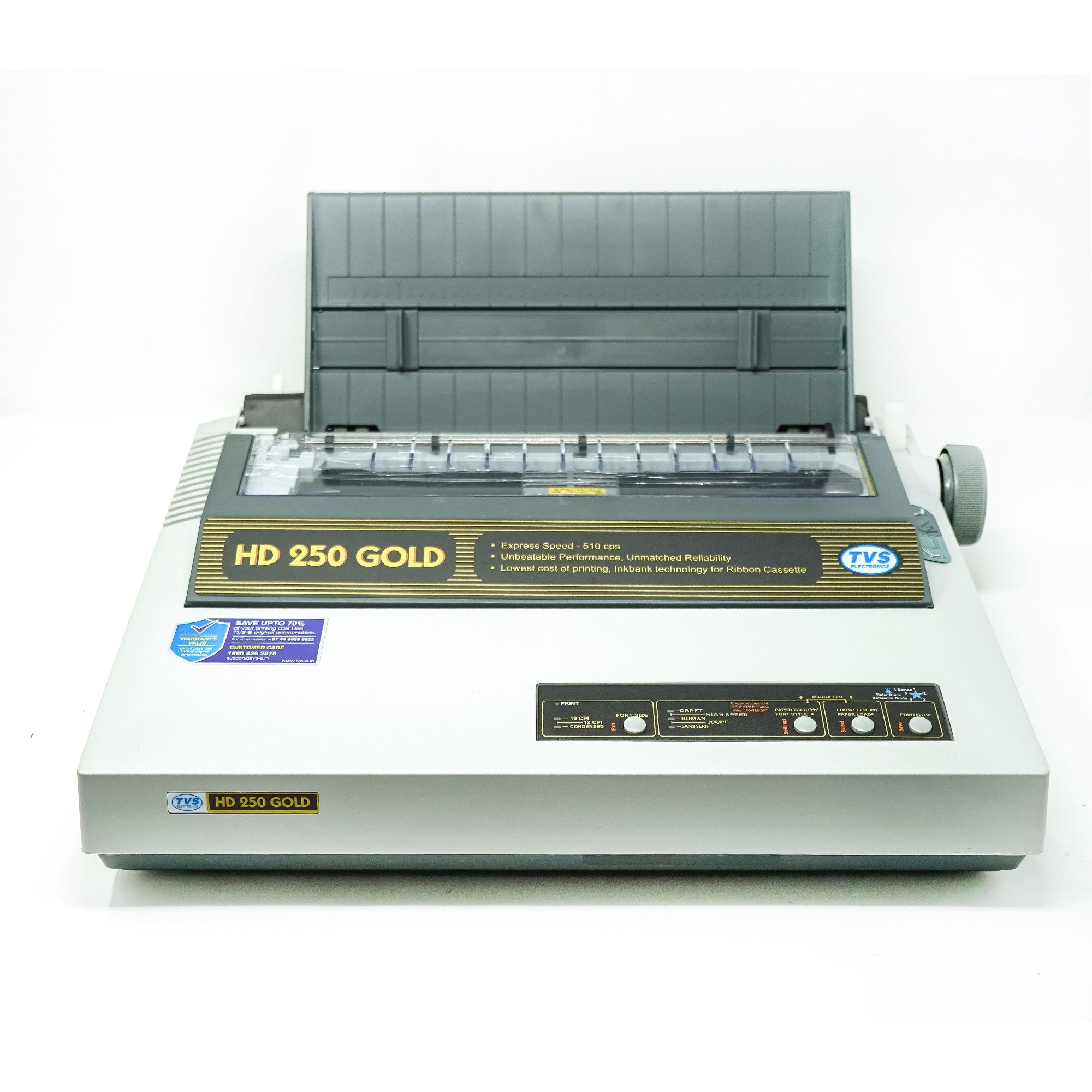

Designed to meet the demands of high-volume billing environments, the TVS Electronics HD 250 Gold Dot Matrix Printer offers unmatched performance, durability, and efficiency. Built in India with robust components, this 80-column printer supports 1 original + 5 carbon copies, making it ideal for retailers, warehouses, government offices, and service centers that require multi-copy documentation.
Equipped with a 9-wire print head and capable of printing up to 516 characters per second, the HD 250 Gold ensures fast and legible output. Its self-lubricating silicon bushes guarantee low maintenance, while the patented InkBank ribbon delivers a long-lasting print life of up to 40 million characters, significantly reducing the total cost of ownership.
Backed by Pan-India service support, this printer is engineered for long-term reliability with a print head life of 200 million characters and 15,000 power-on hours (POH) MTBF.
Product Features
-
High-Speed Performance: Up to 516 CPS for faster printing of bills, receipts, and invoices.
-
Superior Copy Capability: Prints 1 original + 5 copies, ideal for carbon-based forms.
-
Durable 9-Wire Print Head: Ensures clarity, longevity, and heavy-duty usage.
-
Made in India: Engineered for Indian business environments and conditions.
-
Low Maintenance Design: Self-lubricating silicon bushes for smooth carriage movement.
-
Patented InkBank Ribbon: Long-lasting, cost-effective printing with 40 million character life.
-
User-Friendly Interface: 4-button front panel with LED indicators for ease of use.
-
Wide Paper Compatibility: Supports continuous and cut sheet paper up to 10 inches wide.
-
Reliable Output: 200 million character print head life, 11,500 POH MTBF.
-
Versatile Connectivity: USB 2.0, Parallel (Centronics), and optional Serial (RS232) interfaces.
Product Specifications
Print Method | Serial Impact Dot Matrix |
Print Head Type | 9-Wire |
Print Width | 80 Columns |
Print Speeds | HS Draft: 430–516 CPS; Draft: 368–442 CPS; NLQ: 90–112 CPS |
Character Pitches (CPI) | 10, 12, 15, 17, 20 |
Resident Fonts | Draft, Roman, Sans Serif, Script |
Barcode Support | Code 3 of 9, EAN-13, EAN-8, UPC-A, Interleaved 2 of 5 |
Copy Capability | 1 original + 5 copies (Max thickness: 0.52 mm) |
Paper Path | Top, Rear, Bottom (Manual); Push & Pull Tractor Feed |
Supported Paper Width | 3.5" – 10" (Cut Sheets and Continuous Forms) |
Paper Thickness | Up to 0.3 mm (Friction and Tractor) |
Ribbon Type | User-replaceable Patented InkBank Cassette (Black) |
Ribbon Life | 40 Million Characters; InkBank: 10 Million Characters |
Input Buffer | 100 KB |
MTBF | 11,500 POH |
Noise Level | 49 dBA |
Emulations | Epson ESC/P, IBM Proprinter |
Interfaces | USB 2.0, Parallel (IEEE-1284A), Optional RS-232 Serial |
Supported OS | Windows 95/98/2000/XP/Vista/NT 4.0, Linux RedHat |
Operating Voltage & Frequency | 150–270V AC, 47–63 Hz |
Power Consumption | 12W (Standby) |
Operating Temperature | +5°C to +45°C |
Humidity Range | 10% to 80% RH |
Dimensions (W x D x H) | 433 x 379 x 147 mm |
Weight | 5.7 kg |
Warranty | 1 Year (including print head on registration) |
Ideal Use Cases | Bills, Receipts, Invoices, Tickets, Coupons, Statements |
