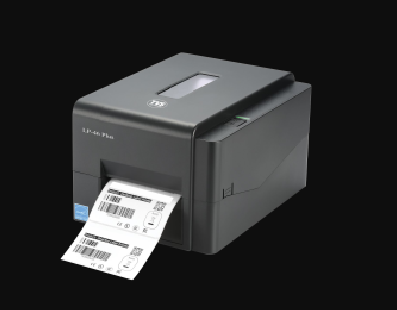

TVS LP 46 PLUS USB+ETHERNET+SERIAL LABEL PRINTER

[Contact us for a price] Request a quote
3006210043

Description

TVS LP 46 PLUS USB+ETHERNET+SERIAL LABEL PRINTER

TVS LP 46 Plus desktop label printer comes with reliability, durable and strong design. LP 46 Plus supports multiple interface options of USB, Serial and Ethernet. It is the most suitable printer for Healthcare, Logistics and Manufacturing.

Features :
  • It has a high ribbon capacity of 300 meters.
  • It uses Thermal transfer and direct thermal printing method.
  • It supports multiple interface options of USB, Ethernet and Serial.
  • Provides a high print rate at the speed of 6 inches per sec.

Specifications :

Printing Method : Thermal Transfer & Direct Thermal

Max. Print width : 108 mm 4.25"

Max. Print Speed : 152.4 mm 6”/second

Max. Print length : 2,794 mm 110"

Resolution : 8 dots/mm 203 DPI

Label roll capacity : 127 mm 5“ OD

Ribbon : 300 m long, max. OD 67 mm, 1” core ink coated outside

Ribbon Width : 40 mm ~ 110 mm 1.6” ~ 4.3”

Processor : 32bit RISC CPU

Memory : 128 MB Flash memory, 64 MB SDRAM

Interface : USB, Serial and Ethernet

Sensors : Transmissive gap sensor, Black mark reflective sensor position adjustable

Power : Input: AC 100240V, 2.5A, 5060Hz, Output: DC 24V, 2.5A, 60W

Printer Language : TSPLEZD Compatible with EPL, ZPL, ZPL II, DPL

Media type : Continuous, die-cut, black mark, fanfold, notched outside wound

Media width : 20 ~ 112 mm 0.8" ~ 4.4"

Media thickness : 0.06 ~ 0.19 mm 2.36 ~ 7.48 mil

Media core diameter : 25.4 ~ 38 mm 1” ~ 1.5”

Label Length : 5-25, 400mm

Physical dimension : 204 mm W x 164 mm H x 280 mm D

Weight : 2.4 kg 5.29 lbs

Attachments

Brochure (tvs-barcode-label-printer-lp-46-plus.pdf, 5,622 Kb) [Download]
