Description

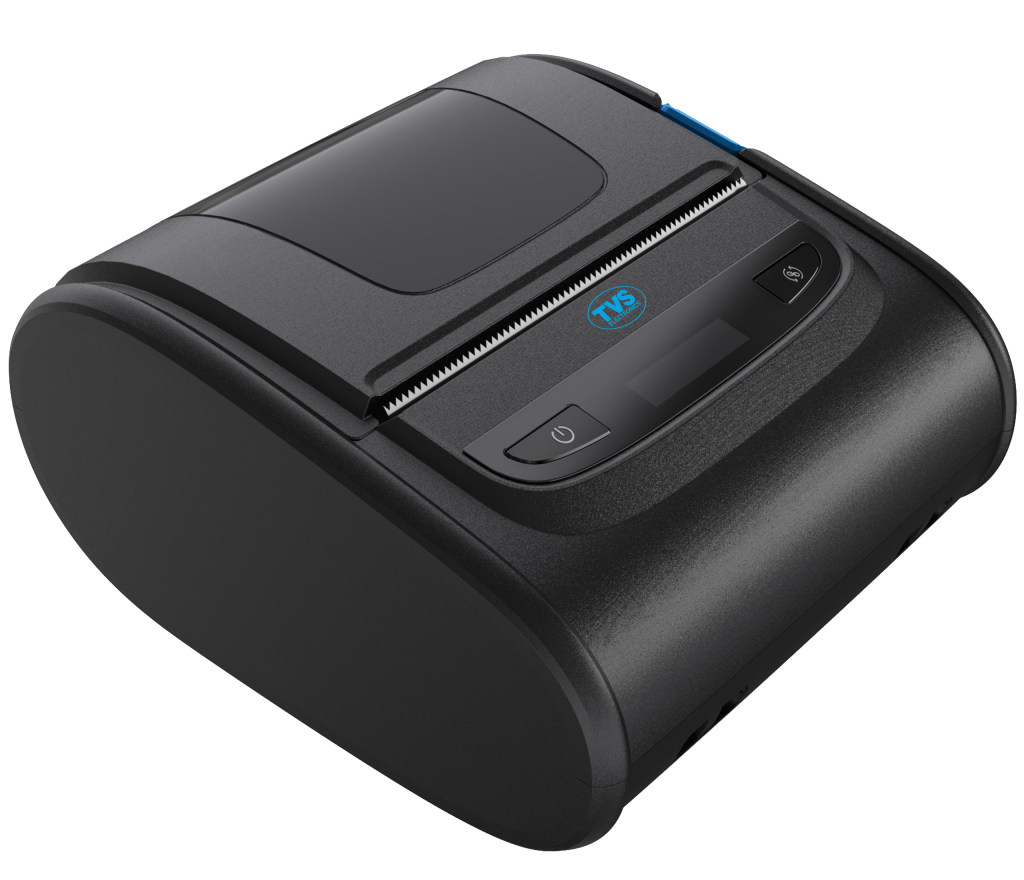

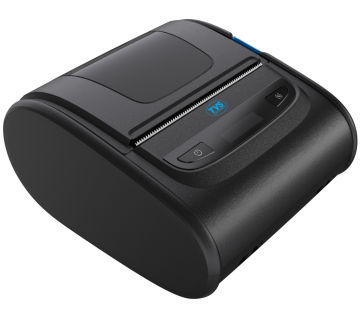

Print like a pro, wherever you go with the TVS MLP 3120, a next-gen 3-inch mobile label and receipt printer built for high-volume, on-the-move printing applications. Whether you're working in transportation, logistics, retail, healthcare, banking, or government, this compact powerhouse delivers exceptional print speeds up to 120 mm/s with precision and ease.
Equipped with a 2500mAh battery, the MLP 3120 supports up to 1400 receipts per charge, and offers multiple connectivity options, including WiFi (2.4G/5G), Bluetooth 4.2/5.0, NFC bump pairing, and USB Type-C for maximum compatibility across devices.
Its IP54-rated water and dust resistance, 1.5m drop protection, and PC+ABS rugged body make it field-ready. The OLED display and ergonomic design enhance user experience, while its powerful Cortex-M7 processor ensures seamless execution of command sets including TSPL, ZPL, CPCL, ESC/POS, and JPL.
Product Features
-
Ultra-fast 120 mm/s printing speed for high-volume applications
-
Supports both labels and receipts with 3” width and 203 DPI resolution
-
Multiple connectivity options: WiFi (2.4G/5G), Bluetooth 4.2/5.0, NFC, USB
-
Print up to 1400 sheets per charge with 2500mAh lithium battery
-
Supports advanced emulations: TSPL, ZPL, CPCL, ESC/POS, JPL
-
IP54-rated for water and dust resistance
-
1.5m drop resistance and rugged PC+ABS casing with TPU rubber
-
OLED screen for intuitive printer management
-
Prints 1D and 2D barcodes including QR Code, PDF417, and Data Matrix
-
Built-in sensors for gap, black mark, paper out, cover open, and overheating
Product Specifications
Print Method | Thermal Line Printing |
Resolution | 203 DPI |
Max Print Speed | 120 mm/s |
Max Print Width | 72 mm |
Media Width | 30 – 80 mm |
Minimum Label Height | 15 mm |
Paper Thickness | 0.053 mm – 0.072 mm |
Roll Diameter | Up to 50 mm |
Case Material | PC+ABS with TPU rubber |
Product Dimensions | 118 × 105 × 62 mm (D × W × H) |
Product Weight | 450g |
Interface Options | USB 2.0, Bluetooth 4.2/5.0, WiFi (2.4G/5G), NFC |
Command Compatibility | TSPL, CPCL, ESC/POS, ZPL, JPL |
Processor | Cortex-M7 |
Battery | 2500mAh / 7.4V Lithium Battery |
Charging Time | 3–3.5 hours (Computer USB: 4 hours) |
Print Capacity/Charge | 1300–1400 sheets (200mm height per sheet) |
Standby Time | Up to 15 days |
TPH Life | 50 km |
Drop Protection | 1.5 meters |
IP Rating | IP54 |
Memory | 16MB Flash, 8MB RAM |
Sensors | Gap, Black Mark, Paper Out, Cover Open, Overheat Alarm |
Barcode Support | 1D: UPC, EAN, Code128, Code39, Codabar, ITF, etc. |
| 2D: QR Code, PDF417, Data Matrix |
Rotation Support | 0°, 90°, 180°, 270° |
Languages | English, Simplified Chinese (GB18030), Traditional Chinese (BIG5) |
Controls | Power Button, Paper Feed/Menu, Lid Open, OLED Display |
