TVS RP 3200 Lite Thermal Receipt Printer- USB + Ethernet

[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +91 92050 81551
3006210059

Need Help

Choosing a Product
+91 92050 81551 Live Chat Email Us
Talk to our technical Expert
price match

Description

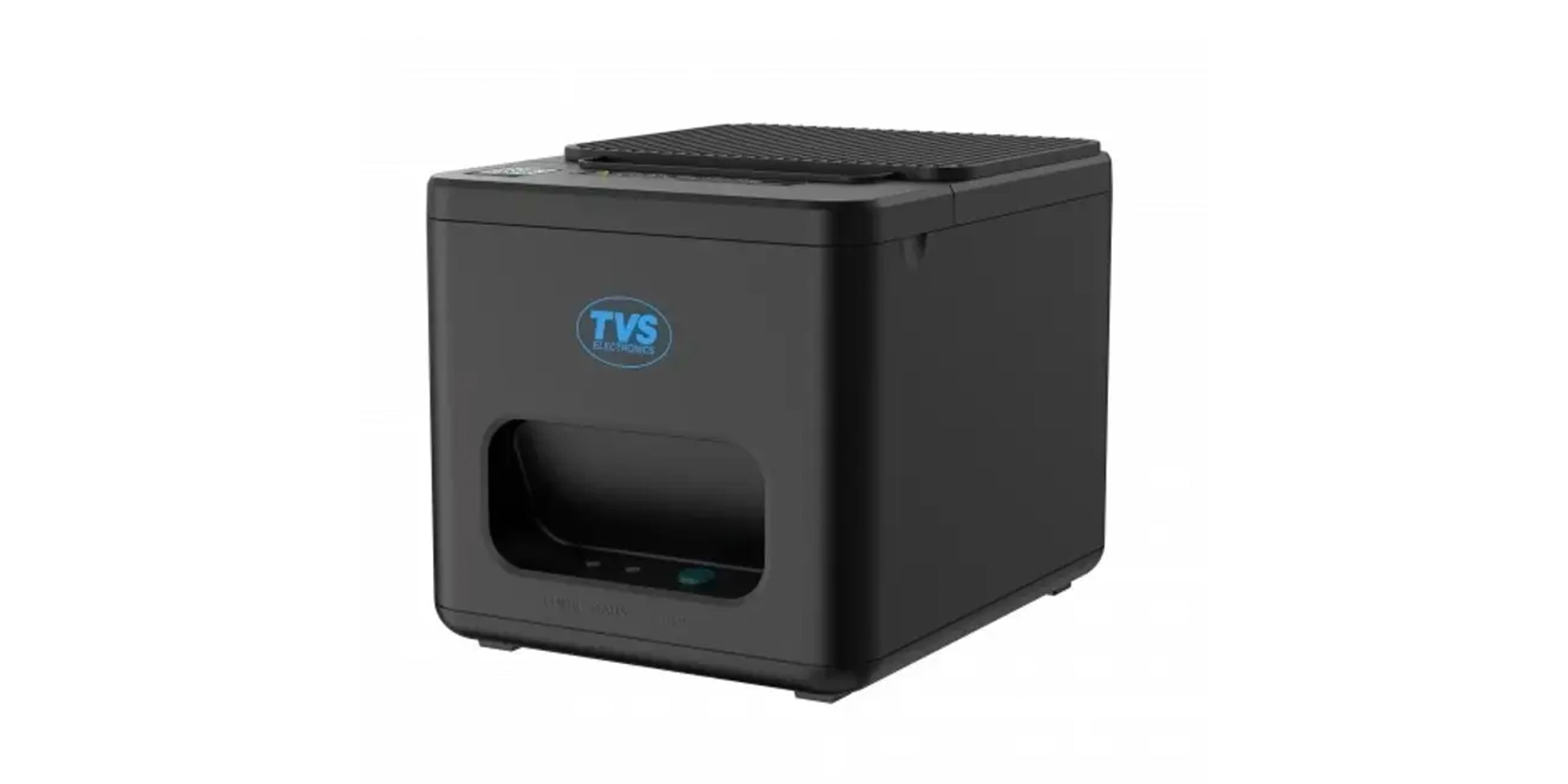

The TVS RP 3200 Lite is a high-speed thermal receipt printer designed to deliver exceptional performance and sharp precision in every transaction. Built with Indian retail, hospitality, and billing environments in mind, this compact printer offers robust features in a sleek, lightweight form factor. Whether you're printing barcodes, logos, or receipts, the RP 3200 Lite handles it all with speed and clarity.

With a blazing print speed of 200 mm/sec and 203 DPI resolution, it ensures fast, legible receipts that improve checkout efficiency. It supports versatile connectivity options — USB, Ethernet, and RJ11 cash drawer ports — making it easy to integrate into existing POS systems. The printer is fully ESC/POS compatible, supports popular barcode formats like CODE128 and QR Code, and offers multi-language support, making it ready for diverse application needs.

Its auto cutter and tear bar, durable build, and extended print head (150 km) and cutter life (1.5 million cuts) make it ideal for high-volume use. Backed by TVS Electronics' trusted support, the RP 3200 Lite is your go-to solution for reliable, high-performance receipt printing.

Product Features

  • High Performance: Fast printing speed of up to 200 mm/sec for quick billing.

  • Precision Output: Crisp resolution of 203 DPI ensures clear text and barcode printing.

  • Compact & Lightweight: Designed for space-constrained counters; easy to handle and install.

  • Multiple Interface Options: Connect via USB, Ethernet, and RJ11 cash drawer port.

  • Smart Paper Handling: Supports auto cutter and tear bar with reflective sensor detection.

  • ESC/POS Compatible: Uses industry-standard protocol, supporting popular formats like CODE128, QRCODE, and more.

  • Multi-Language Support: Built-in character sets including Chinese, Japanese, Korean, and ANK.

  • Durability: Print head life of 150 km and cutter life of 1.5 million cuts, built for heavy-duty retail use.

  • Driver & Utility Support: Compatible with standard drivers and utilities used in Indian billing setups.

Product Specifications

Model

RP 3200 Lite

Printer Type

Thermal Receipt Printer

Resolution

8 dots/mm (203 DPI)

Printing Method

Direct Thermal

Print Head

ROHM / KAITONG

Print Speed

Max 200 mm/sec

Print Width

72 mm

CPU

144 MHz, 32-bit Cortex-M4

RAM

64K bytes

ROM

256K bytes

Flash Memory

32M bytes

Indicator Lights

FEED light, Error light

Interfaces Available

USB, Ethernet, RJ11 (Cash Drawer)

Buzzer

Standard

Sensors

Reflective sensor

Paper Cutting

Auto Cutter / Tear Bar

Print Head Life

150 km

Cutter Life

1.5 million cuts

Printer Language

Simplified Chinese, Traditional Chinese, Japanese, Korean, ANK

Supported Protocol

ESC/POS Standard

Barcode Support

CODE128, QRCODE, etc.

Media Type

Thermal Paper

Media Width

58 mm / 80 mm

Dimensions (D×W×H)

130 mm x 161 mm x 126 mm

Net Weight

1 kg



Attachments

Brochure (RP_3200_Lite_Brochure.pdf, 850 Kb) [Download]
