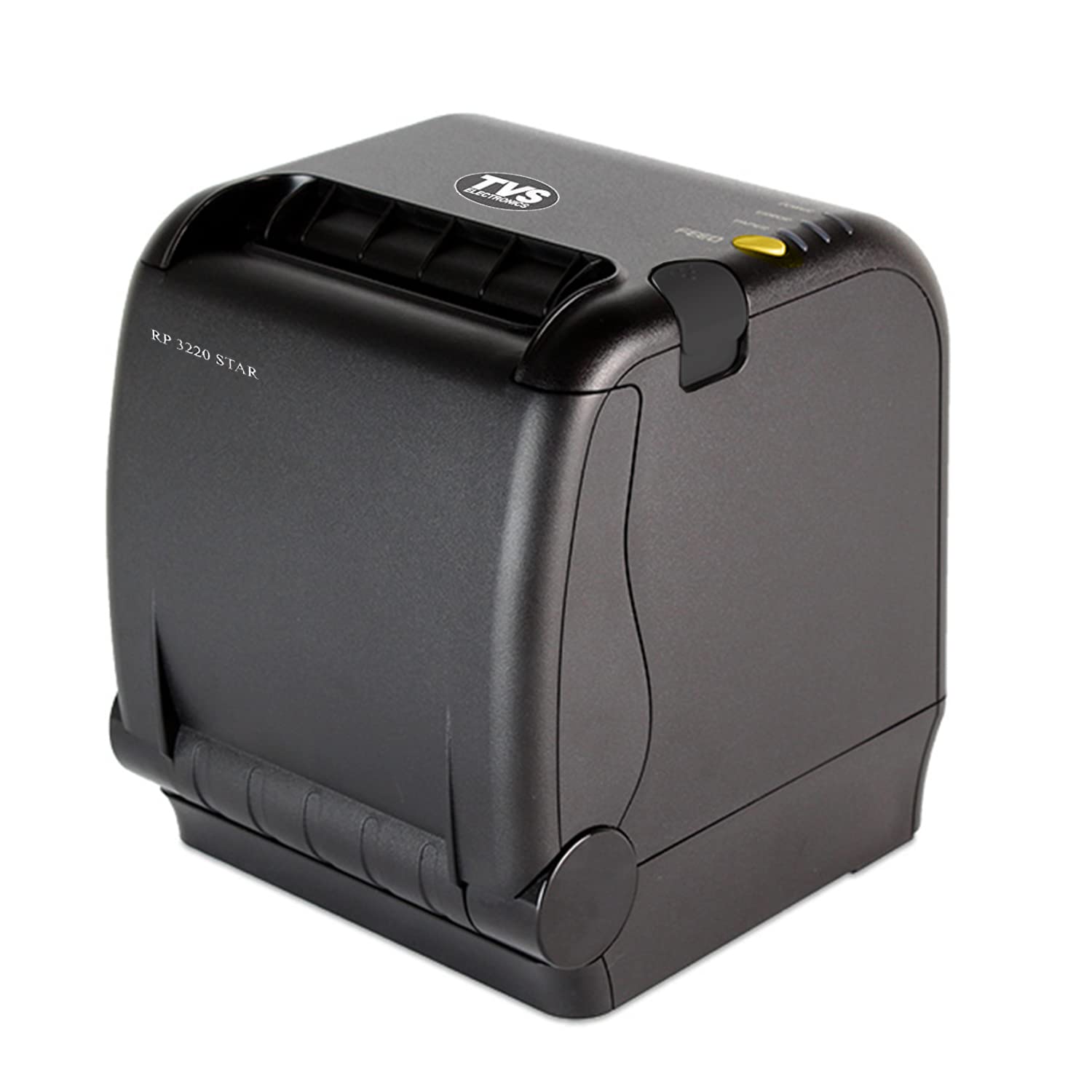

TVS RP-3220 STAR AUS USB BLUETOOTH THERMAL RECEIPT PRINTER

[Contact us for a price] Request a quote
For Special & Volume Pricing - Call +91 92050 81551
3006290008

Need Help

Choosing a Product
+91 92050 81551 Live Chat Email Us
Talk to our technical Expert
price match

Description

The RP 3220 STAR is a premium direct thermal-line printer engineered for high-speed and high-volume printing needs. With a blazing-fast print speed of 220 mm/sec, advanced 1D & 2D barcode support, and multiple connectivity options including USB, Serial, Ethernet, Wi-Fi, and Bluetooth, this printer is ideal for dynamic retail, logistics, hospitality, and warehousing environments across India. It combines reliability, versatility, and ease of use in a compact design with enhanced durability – making it the go-to solution for businesses demanding performance and efficiency.

Product Features

  • Ultra-Fast Printing: Prints at a rapid speed of 220 mm/sec, improving workflow and customer service times.

  • High Reliability: Durable print head lifespan of 150 km and auto cutter life of 1.5 million cuts.

  • Wide Barcode Support: Compatible with 1D (Code 128, EAN, UPC) and 2D (QR Code, Data Matrix, PDF417) barcodes.

  • Flexible Paper Handling: Supports standard 80 mm width paper with 83 mm diameter rolls.

  • Multiple Interface Options: Standard USB + Serial; optional Ethernet, Wi-Fi, or Bluetooth interfaces.

  • ESC/POS Compatibility: Seamlessly integrates with POS systems and software using standard ESC/POS commands.

  • Built-in Sensors: Equipped with paper end and cover open detection for smooth operations.

  • Space-Saving Design: Compact and wall-mountable, ideal for counters with limited space.

  • Cash Drawer Support: Integrated DKD port for automatic cash drawer operation.

  • Low Maintenance: Direct thermal printing eliminates the need for ink or ribbons.

Product Specifications

Print ModelRP 3220 STAR
Printing MethodDirect Thermal-line printing
Resolution180 DPI
Max. Print Speed220 mm/sec (8.7″/second)
Max. Print Width72 mm (2.8″)
Paper Width80 mm
Paper Thickness0.065 mm
Paper Roll Diameter83 mm
Flash Memory2 MB
Barcode (1D)Code 11, Code 39, Code 93, Codabar, ISBT128, UPCA, UPCE, EAN8, EAN13, Code 128 (A/B/C), Interleaved 2of5
Barcode (2D)PDF417, QR Code, Data Matrix
Standard InterfaceUSB Type B + Bluetooth
Power TypeExternal SMPS
Power Input (AC)100 ~ 240 VAC, 50/60 Hz
Power Output (DC)24 VDC / 1.75A
SensorsPaper End, Cover Open
Print Head Life150 km

Attachments

Brochure (RP_3220_Star_Brochure.pdf, 828 Kb) [Download]
