Description

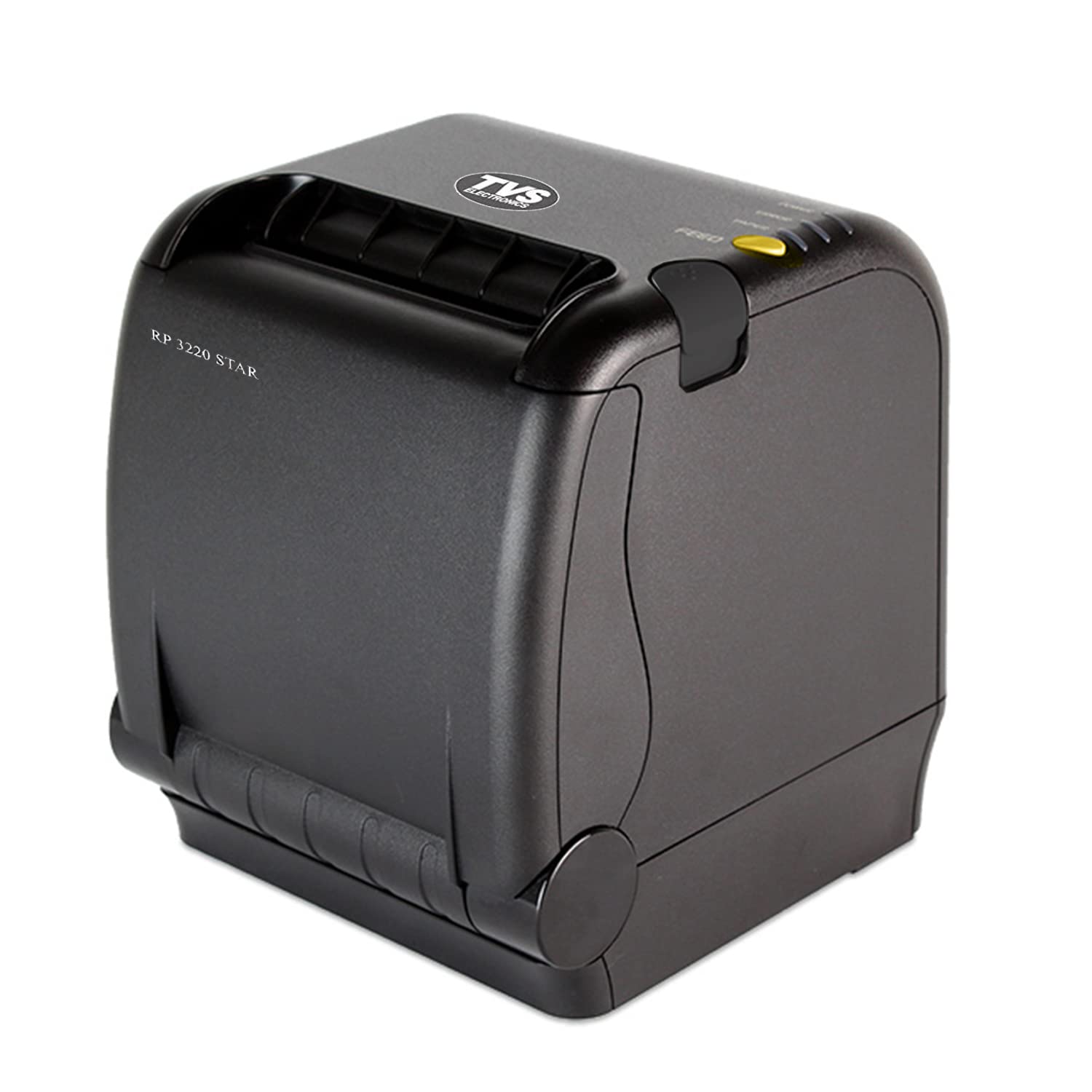

The RP 3220 STAR is a premium direct thermal-line printer engineered for high-speed and high-volume printing needs. With a blazing-fast print speed of 220 mm/sec, advanced 1D & 2D barcode support, and multiple connectivity options including USB, Serial, Ethernet, Wi-Fi, and Bluetooth, this printer is ideal for dynamic retail, logistics, hospitality, and warehousing environments across India. It combines reliability, versatility, and ease of use in a compact design with enhanced durability – making it the go-to solution for businesses demanding performance and efficiency.
Product Features
-
Ultra-Fast Printing: Prints at a rapid speed of 220 mm/sec, improving workflow and customer service times.
-
High Reliability: Durable print head lifespan of 150 km and auto cutter life of 1.5 million cuts.
-
Wide Barcode Support: Compatible with 1D (Code 128, EAN, UPC) and 2D (QR Code, Data Matrix, PDF417) barcodes.
-
Flexible Paper Handling: Supports standard 80 mm width paper with 83 mm diameter rolls.
-
Standard Interface Options: Standard USB + Serial.
-
ESC/POS Compatibility: Seamlessly integrates with POS systems and software using standard ESC/POS commands.
-
Built-in Sensors: Equipped with paper end and cover open detection for smooth operations.
-
Space-Saving Design: Compact and wall-mountable, ideal for counters with limited space.
-
Cash Drawer Support: Integrated DKD port for automatic cash drawer operation.
-
Low Maintenance: Direct thermal printing eliminates the need for ink or ribbons.
Product Specifications
Print Model | RP 3220 STAR |
Printing Method | Direct Thermal-line printing |
Resolution | 180 DPI |
Max. Print Speed | 220 mm/sec (8.7″/second) |
Max. Print Width | 72 mm (2.8″) |
Paper Width | 80 mm |
Paper Thickness | 0.065 mm |
Paper Roll Diameter | 83 mm |
Flash Memory | 2 MB |
Barcode (1D) | Code 11, Code 39, Code 93, Codabar, ISBT128, UPCA, UPCE, EAN8, EAN13, Code 128 (A/B/C), Interleaved 2of5 |
Barcode (2D) | PDF417, QR Code, Data Matrix |
Standard Interface | USB Type B + Serial |
Power Type | External SMPS |
Power Input (AC) | 100 ~ 240 VAC, 50/60 Hz |
Power Output (DC) | 24 VDC / 1.75A |
Sensors | Paper End, Cover Open |
Print Head Life | 150 km |
